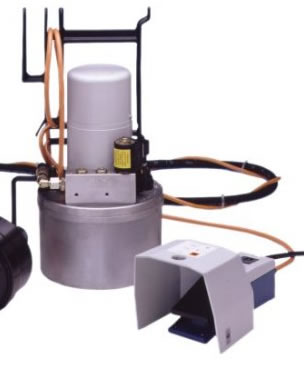

HA1 - ES
Leaders when it comes to problem-solving in cable and switchbox
installations, Novopress hydraulic power packs are designed
to operate at a low 150 bar over a wide range of applications.
This design combines the clear advantages of increased work
safety, and long service life for the tool and its attached
devices. In addition, these hydraulic power packs are a byword
for the high quality associated with all Novopress products.
A combined safety and return valve prevents overloading of
the unit and any attached tools. As soon as the motor cuts
out, the piston returns to its starting position in the attached
tool.
Quick connectors are used to attach all tools. The unit is
operated by a three-position safety switch with emergency
cut-off.
Complies with VDE regulation 0740.
| Technical Specifications |
| Drive |
1 Electric Motor 230V or
110V, 800W, 4A |
| Weight Incl Oil |
15.5Kg |
| Height |
470mm |
| Oil Capacity |
3.5L |
| Operation S3 |
25% 100s |
| Safety Rating |
IP44 |
| Radio Interference Suppression |
EN 50 081/2 |
| Cable |
5M |
| Hydraulic Hose |
2.5M |
| Max. Pressure |
150 bar (2200 psi) |
| Feed at n=1000 1/min |
0.45L |
| n MAX. |
10000 1/MIN |
|
|
 |
