With over 35 years of experience, we have developed
extensive skills and knowledge allowing us to design and manufacture protection
current and voltage instrument transformer in addition to
our range of high accuracy
measuring current and voltage instrument transformer. |
| Browse our Picture
Gallery to see the products we supply or click on the SPYGLASS
images below to see a zoomed image. |
Terminology
|
| Some of the Instrument
Transformer Terminology we use. |
| |
Introduction to Measurement Transformers
|
| Measurement
Transformer information to assist you in selecting the correct
metering transformers for your application. |
|
| |
|
Introduction to Protection Transformers
|
| Protection
Transformer information to assist you in selecting the correct
protection transformer for your application. |
|
| |
|
Indoor / Outdoor Low Voltage Ring Type Metering
Transformer
(indoor range shown)
|
| Model
R25 Measuring Current Transformer with approx. 25mm ID |
  |
| Model
R40 Measuring Current Transformer with approx. 40mm ID |
| Model
R80 Current Transformer for measurement with approx. 80mm
ID |
| Model
R102 Measuring Current Transformer with approx. 102mm ID |
| Model
R125 Measuring Current Transformer with approx. 125mm ID |
| Indoor Plastic Case Ring Transformers 30,43,57,72
& 113mm ID |
|
| |
|

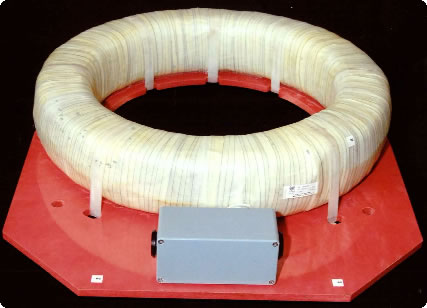

Indoor Generator Current Transformers
|
| Generator
Current Transformer custom designed to meet your requirements,
this cost effective solution is a welcome addition for our global
power transformer customers. |
 |
| |
|
Indoor Low Voltage Rectangular Type Measuring
Transformers
|
| Model
Rectangular current transformers designed for metering applications
on circuit breakers when space is tight. |
 |
| |
|
Split Core Current Transformers
|
| Split
Core current transformers finished in either nylon / PVC
tape or encapsulated in epoxy resin suitable for measuring and
protection applications. |
 |
| |
|
Indoor Low Voltage Plastic Case Transformers
|
|
Our standard Plastic Case Transformer suitable for
a wide range of measurement, monitoring & control applications,
ideal for switchgear and panel board OEM's.
|
|
| Legacy
Model M25 Metering Current Transformers with 26mm cable
aperture and 75mm wide |
| Legacy
Model M2530 Metering Current Transformer with 26mm cable
aperture and 30mm wide |
| Legacy
Model M40 Instrument Current Transformers with 30mm or 1x40x13mm
aperture for cable or busbar |
| Legacy
Model M4032 Indoor Metering Current Transformer with 30mm
or 1x40x13mm aperture for cable or busbar and 32mm wide |
| Legacy
Model M64 Measurement Current Transformers with 45mm or
1x64x13 or 2x51x10mm cable or busbar and 95mm wide |
| Legacy
Model M6431 Metering Current Transformer with 45mm or 1x64x13
or 2x51x10mm cable or busbar and 55mm wide |
| Legacy
Model M102 Metering Current Transformers with 65mm or 1x102x12.5
or 2x60x10mm cable or busbar and 95mm wide |
| Legacy
Model M10235 Measurement Instrument Current Transformer
with 65mm or 1x102x12.5 or 2x60x10mm cable or busbar and 63mm
wide |
| Giving you a greater understanding
on how we put our transformers together. Image on right shows
an exploded view of our traditional shaped plastic case CT. |
 |
| Model
M4514 Metering Low Voltage Current Transformers with 14mm
cable aperture (W45 L40 H65mm). Complete with integrated terminal
cove and available with DIN rail mounting accessory. |
 |
| Model
M4521 Low Voltage Metering Current Transformer with 14mm
cable aperture (W45 L40 H65mm). Complete with integrated terminal
cover and available with DIN rail mounting accessory. |
 |
| Model
M6222R Metering CT with aperture for 22.5mm cable (W62 L40
H78mm). complete with integrated terminal cover and DIN rail
fixings. |
 |
| Model
M6220 Metering CT with aperture for 20 x 15mm Busbar (W62
L40 H78mm). complete with integrated terminal cover, Busbar
Clamp and DIN rail fixings. |
 |
| Model
M6230 Metering CT with aperture for 30.5mm dia. Cable or
31 x 10mm Busbar (W62 L40 H78mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |
| Model
M6240 Metering CT with aperture for 31mm dia Cable or 40
x 11mm Busbar (W62 L40 H78mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |

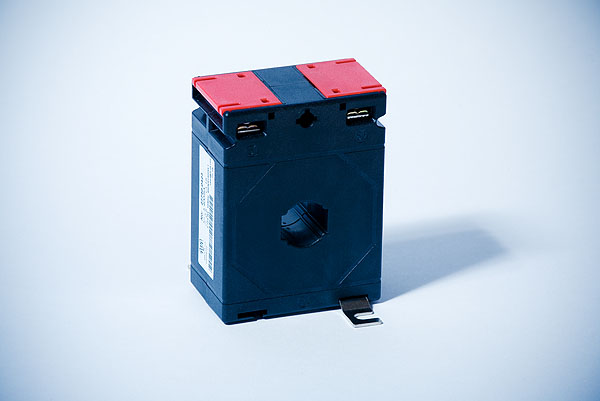

| Model
M7420 Metering CT with aperture for 20.4mm dia Cable or
21 x 11mm Busbar (W74 L40 H98mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |
| Model
M7430 Metering CT with aperture for 26mm dia Cable or 21
x 11mm Busbar (W74 L40 H98mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |
| Model
M7440 Metering CT with aperture for 35mm dia Cable or 47
x 12.5mm Busbar (W74 L40 H98mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |
| Model
M7450 Metering CT with aperture for 41mm dia Cable or 51
x 12.5mm Busbar (W74 L40 H98mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |
| Model
M8640 Metering CT with aperture for 36mm dia Cable or 41
x 11mm Busbar (W86 L40 H110mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |
| Model
M8650 Metering CT with aperture for 46mm dia Cable or 51
x 11mm Busbar (W86 L45 H110mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |
| Model
M8660 Metering CT with aperture for 51mm dia Cable or 61
x 11mm Busbar (W86 L45 H110mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |

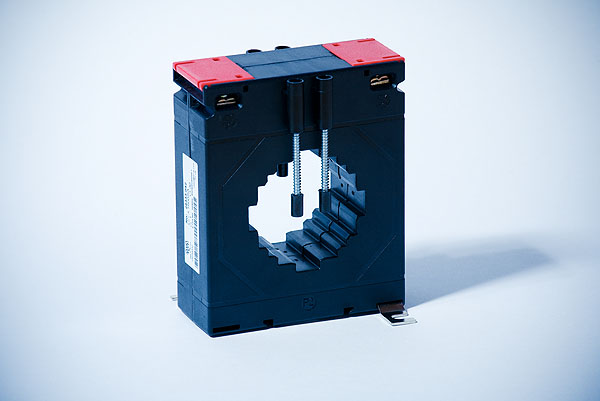

| Model
M10460 Metering CT with aperture for 54mm dia Cable or 61
x 11mm Busbar (W104 L45 H126mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |

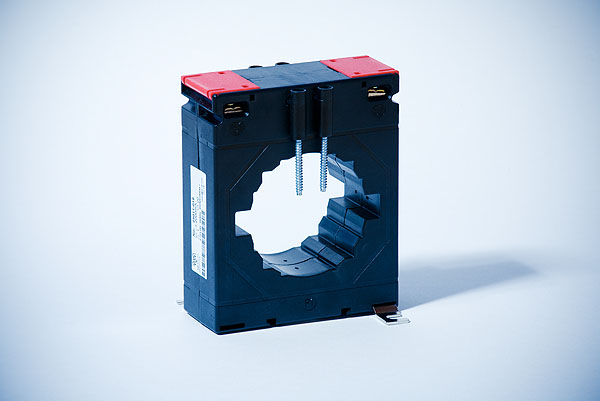

| Model
M10480 Metering CT with aperture for 65mm dia Cable or 81
x 11mm Busbar (W104 L45 H126mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |
| Model
M14080 Metering CT with aperture for 73mm dia Cable or 81
x 11mm Busbar (W140 L45 H155mm). complete with integrated terminal
cover, Busbar Clamp and DIN rail fixings. |
 |
| Model
M140100V Metering CT with aperture for 86mm dia Cable or
101 x 11mm Busbar (W140 L45 H155mm). complete with integrated
terminal cover, Busbar Clamp and DIN rail fixings. |
 |

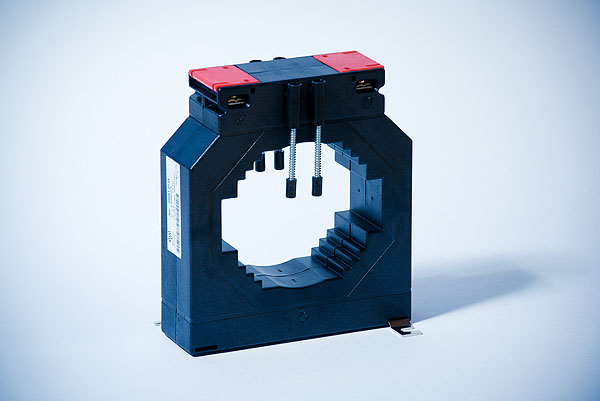

| Model
M140100H Metering CT with aperture for 86mm dia Cable or
101 x 11mm Busbar (W140 L45 H155mm). complete with integrated
terminal cover, Busbar Clamp and DIN rail fixings. |
 |
| Model
ITL 780, 781, 785 & 786 Measuring and Protection CT's
as a cost effective alternative to ITI transformers. |
 |
| Giving you a greater understanding
on how we put our transformers together. Image on right shows
an exploded view of our plastic cased ring type CT. |
 |
| Model
R30TW1 Ring type metering CT with 30mm aperture comes complete
with sealable terminal cover. |
 |
| Model
R30TW2 Ring type metering CT with 30mm aperture is slightly
thinner than its TW1 brother but has higher accuracy capability
and is ideal for those tricky installations where space is at
a premium. |
 |
| Model
R43TW3 Ring type metering CT with 43mm aperture comes complete
with busbar mounting kit and sealable terminal cover. |
 |
| Model
R58TW4 Ring type metering CT with 58mm aperture comes complete
with busbar mounting kit and sealable terminal cover |
 |
| Model
R72TW5 Ring type metering CT with 72mm aperture complete
with busbar mounting assembly and sealable terminal cover. |
 |
| Model
R113TW6 Ring type metering CT with 113mm aperture comes
complete with a busbar mounting kit and sealable terminal cover. |
 |
| |
|
Indoor / Outdoor Low Voltage Ring Type Protection
Class Transformers
(indoor range shown)
|
| Model
R30P Protection Current Transformer with approx. 30mm ID |
|
| Model
R66P Protection Current Transformers with approx. 66mm ID |
| Model
R80P Indoor Protection Current Transformer with approx.
80mm ID |
| Model
R100P Low Voltage Protection Current Transformers with approx.
100mm ID |
| Model
R123P Indoor Protection Current Transformer with approx.
123mm ID |
| |
|
Outdoor Medium Voltage Transformers
|
| Medium
Voltage ( MV ) Outdoor Transformer Post type / Bushing type
transformers with either Oil or Compound filled up to 145kV.
Alternatively Cyclo-Alphatic Resin encapsulated up to 36kV. |
 |
| |
|
Indoor Medium Voltage Transformers
|
| MV
Indoor Transformer Block type or toroidal type current transformers
suitable for measurement or protection applications within switchboards.
Single phase voltage transformers with or without primary fuses.
Additional range equivalent to ITI PTG3 and PTG5 also available. |
 |
