Model R80P

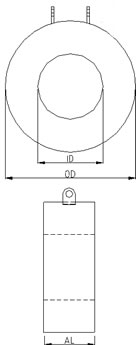

Ratio ID OD VA Axial Length (mm) For Accuracy Class
10P5 10P10 10P15 10P20 5P5 5P10 5P15 5P20
300/5A or 1A 66 130 2.5 36 50 64 106 36 64 92 137
5 36 64 106 162 50 92 134 -
7.5 50 92 148 - 64 120 - -
10 64 120 - - 78 148 - -
15 92 176 - - 106 - - -
20 106 - - - 134 - - -
400/5A or 1A 82 127 2.5 22 36 51 78 22 36 54 92
5 36 50 78 106 36 64 92 134
7.5 36 69 106 148 36 78 120 -
10 50 78 120 - 50 92 148 -
15 64 92 176 - 64 134 - -
20 92 148 - - 78 176 - -
500/5A or 1A 82 127 2.5 22 36 50 78 22 36 64 106
5 36 50 78 106 36 64 92 176
7.5 36 69 106 148 36 78 120 -
10 50 78 120 - 50 92 148 -
15 64 92 176 - 64 134 - -
20 64 148 - - 78 176 - -
600/5A or 1A 82 137 2.5 26 36 50 64 22 36 69 92
5 36 50 64 106 36 50 78 120
7.5 36 64 92 134 36 64 106 162
10 50 69 106 162 50 78 134 -
15 50 92 148 - 61 106 - -
20 64 120 - - 78 148 - -
750/5A or 1A 78 127 2.5 26 40 40 68 26 40 68 82
5 26 40 68 82 40 54 68 110
7.5 40 59 82 100 40 68 96 138
10 40 68 96 138 40 82 124 180
15 54 82 124 - 54 96 166 -
20 54 110 166 - 68 124 - -
8005/A or 1A 78 127 2.5 26 40 40 68 26 40 54 68
5 26 40 68 82 40 54 68 110
7.5 40 54 68 110 40 68 96 138
10 40 68 96 124 40 68 124 166
15 54 82 124 180 54 96 152 166
20 54 96 152 - 68 110 - -
1000/5A or 1A 78 128 2.5 26 40 40 54 26 40 54 68
5 26 40 54 68 26 40 68 96
7.5 40 40 68 96 40 54 82 124
10 40 54 82 110 40 68 96 138
15 40 68 110 152 40 82 124 -
20 54 82 124 - 54 96 152 -
1200/5A or 1A 78 128 2.5 26 26 40 54 26 40 40 68
5 26 40 54 78 26 40 54 82
7.5 26 40 68 82 40 54 68 110
10 40 54 68 96 40 68 82 124
15 40 68 96 138 40 82 110 180
20 40 82 110 - 54 96 152 -
1500/5A or 1A 78 128 2.5 25 39 39 67 25 39 53 81
5 25 39 53 67 25 39 67 95
7.5 25 39 67 81 25 53 67 123
10 39 39 67 109 39 53 81 137
15 39 53 95 137 39 67 109 179
20 39 67 109 - 39 81 137 -
1600/5A or 1A 74 131 2.5 29 43 43 57 29 43 57 85
5 29 43 57 71 29 43 71 99
7.5 29 43 57 85 29 43 71 127
10 29 43 81 99 43 57 85 141
15 43 57 85 127 43 81 113 183
20 43 71 113 169 43 85 127 -
2000/5A or 1A 74 131 2.5 29 43 43 57 29 43 57 71
5 29 43 43 71 29 43 57 99
10 29 43 71 99 43 43 85 127
15 43 57 71 127 43 57 99 155





Ordering Information
Required Information Example
Ratio 1000/5A
VA 10VA
Accuracy Class Class 5P20
Minimum Inside Diameter 100mm
Assmbley Style RT Terminals
Assmbley Style RLx Ring with Leads 1Metre (RL1M)
Assmbley Style RTS Ring with Terminals & Screws
Assmbley Style RTF Ring with Terminals & Frame
Assmbley Style RTC Ring with Terminals & Busbar Clamp
Assembley Styles Multiple configuration RTFS
