Power Monitoring & Control Current Transformer

Current Transformers with a ratio of Ip/5, for measurement devices such as ammeters, kilowatt hour meters and multi meters. Ratios ranging from 100/5A to 1600/5A and a plastic case in accordance with Thermal Class E. Capable of being mounted using incorporated DIN rail fitting or flat fixed on a base the M10460 comes complete with sealable integrated terminal cover.

Model M10460

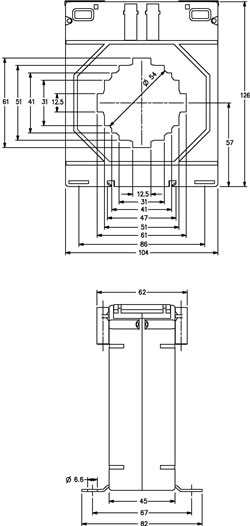

Primary Current Range	Primary Accomodation	Body Unit Dimensions (L x W x H) mm	Maximum VA at Accuracy Class
			Class 0.2s	Class 0.2	Class 0.5	Class 1	Class 3
100/5A	54mm dia hole 81 x 12.5 Busbar	104 x 45 x 126 57mm from deck to center of aperture	-	-	-	1.5	3.75
120/5A			-	-	-	2.5	5
125/5A			-	-	-	2.5	5
150/5A			-	-	2.5	5	10
200/5A			-	-	3.75	10	15
250/5A			-	1.5	7.5	12.5	15
300/5A			1.5	2.5	10	15	20
400/5A			2.5	3.75	10	15	20
500/5A			3.75	7.5	15	20	30
600/5A			5	10	15	30	-
750/5A			5	15	20	30	-
800/5A			7.5	15	30	30	-
1000/5A			10	20	30	45	-
1200/5A			10	30	30	45	-
1250/5A			10	30	30	45	-
1500/5A			10	30	30	45	-
1600/5A			10	30	30	45	-
