Power Monitoring & Control Current Transformer

Current Transformers with a ratio of Ip/5, for measurement devices such as ammeters, kilowatt hour meters and multi meters. Ratios ranging from 200/5A to 2000/5A and a plastic case in accordance with Thermal Class E. Capable of being mounted using using incorporated DIN rail fitting or flat fixed on a base the M10480 comes complete with sealable integrated terminal cover.

Model M10480

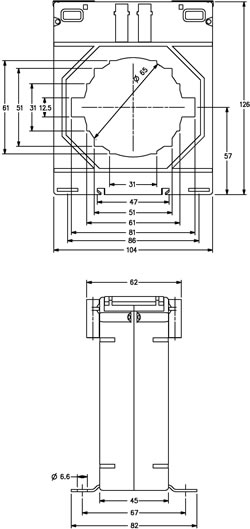

Primary Current Range	Primary Accomodation	Body Unit Dimensions (L x W x H) mm	Maximum VA at Accuracy Class
			Class 0.2s	Class 0.2	Class 0.5	Class 1	Class 3
200/5A	65mm dia hole 81 x 12.5 Busbar	104 x 45 x 126 57mm from deck to center of aperture	-	-	-	1.5	-
250/5A			-	-	1.5	2.5	7.5
300/5A			-	-	2.5	7.5	-
400/5A			-	1.5	5	10	12.5
500/5A			-	1.5	5	10	12.5
600/5A			-	2.5	7.5	12.5	15
750/5A			5	5	10	15	-
800/5A			5	7.5	10	15	-
1000/5A			7.5	12.5	20	20	-
1200/5A			5	15	20	30	-
1250/5A			10	15	20	30	-
1500/5A			10	15	20	30	-
1600/5A			10	15	20	30	-
2000/5A			10	15	20	30	-
