Power Monitoring & Control Current Transformer

Current Transformers with a ratio of Ip/5, for measurement devices such as ammeters, kilowatt hour meters and multi meters. Ratios ranging from 200/5A to 4000/5A and a plastic case in accordance with Thermal Class E. Capable of being mounted on Busbar or flat fixed on a base the M140100H (Horizontal Busbar Orientation) comes complete with sealable integrated terminal cover.

Model M140100H
Primary Current Range	Primary Accomodation	Body Unit Dimensions (L x W x H) mm	Maximum VA at Accuracy Class
			Class 0.2s	Class 0.2	Class 0.5	Class 1	Class 3

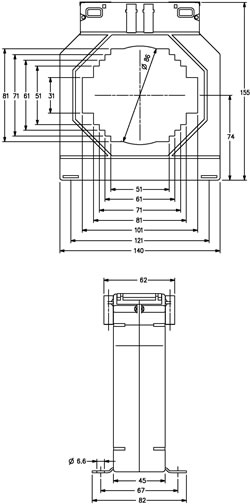

200/5A	86mm dia hole 101 x 31 Busbar	140 x 45 x 155 74mm from deck to center of aperture	-	-	1.5	3.75	5
250/5A			-	-	2.5	5	-
300/5A			-	-	-	7.5	10
400/5A			-	1.5	7.5	10	12.5
500/5A			-	2.5	10	12.5	-
600/5A			2.5	3.75	10	15	20
750/5A			5	5	15	20	30
800/5A			5	5	15	20	30
1000/5A			5	7.5	15	20	30
1200/5A			10	15	15	20	-
1250/5A			10	15	15	30	-
1500/5A			10	20	20	30	-
1600/5A			10	20	20	45	-
2000/5A			10	30	45	45	-
2500/5A			10	30	45	45	-
3000/5A			10	30	60	60	-
4000/5A			10	30	60	60	-
