m140100v current transformer

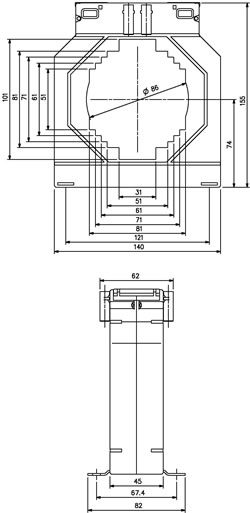

m140100v outline drawing



Power Monitoring & Control Current Transformer

Current Transformers with a ratio of Ip/5, for measurement devices such as ammeters, kilowatt hour meters and multi meters. Ratios ranging from 200/5A to 3000/5A and a plastic case in accordance with Thermal Class E. Capable of being mounted on Busbar or flat fixed on a base the M140100V (Vertical Busbar Orientation) comes complete with sealable integrated terminal cover.

Model M140100V
Primary Current Range Primary Accomodation

Body Unit Dimensions

(L x W x H) mm

Maximum VA at Accuracy Class
Class 0.2 Class 0.5 Class 1 Class 3
200/5A 86mm dia hole 31 x 101 Busbar

140 x 45 x 155

74mm from deck to center of aperture

- 1.5 3.75 5
250/5A - 2.5 5 -
300/5A - - 7.5 10
400/5A - 7.5 10 12.5
500/5A 2.5 10 12.5 12.5
600/5A 3.75 10 15 20
750/5A 5 15 20 30
800/5A 5 15 20 30
1000/5A 10 15 20 30
1200/5A 15 15 30 -
1250/5A 15 15 30 -
1500/5A 20 15 30 -
1600/5A 20 30 45 -
2000/5A 30 45 45 -
2500/5A 30 45 45 -
3000/5A 39 60 60 -
Availability Buy Product Online Save 5% if you pay by Credit Card
Range Not Stocked No
