m4521 high accuracy current transformer

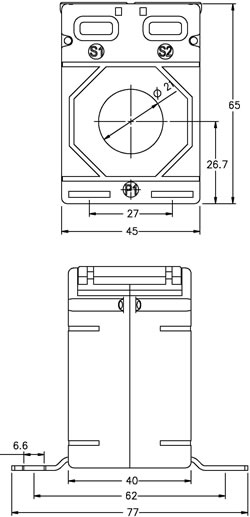

m4521 outline drawing



Power Monitoring & Control Current Transformer

Current Transformers with a ratio of Ip/5, for measurement devices such as ammeters, kilowatt hour meters and multi meters. Ratios ranging from 50/5A to 400/5A and a plastic case in accordance with Thermal Class E. Capable of being mounted on DIN rail (accessory required) or flat fixed on a base the M4521 comes complete with sealable integrated terminal cover.

Model M4521
Primary Current Range Primary Accomodation

Body Unit Dimensions

(L x W x H) mm

Maximum VA at Accuracy Class
Class 0.5 Class 1 Class 3
50/5A 21mm dia hole

45 x 40 x 65

27mm from deck to center of aperture

- 1 1.5
60/5A - 1 1.5
75/5A - 1.5 1.5
80/5A 1 1.5 2.5
100/5A 1.5 2.5 2.5
120/5A 1.5 2.5 3.75
125/5A 2.5 3.75 3.75
150/5A 2.5 3.75 5
200/5A 3.75 3.75 5
250/5A 3.75 5 5
300/5A 5 5 7.5
400/5A 3.75 5 7.5
Availability Buy Product Online Save 5% if you pay by Credit Card
Range Not Stocked No
