Power Monitoring & Control Current Transformer

Current Transformers with a ratio of Ip/5, for measurement devices such as ammeters, kilowatt hour meters and multi meters. Ratios ranging from 200/5A to 2000/5A and a plastic case in accordance with Thermal Class E. Capable of being mounted on Busbar or flat fixed on a base the M14080 comes complete with sealable integrated terminal cover.

Model M14080

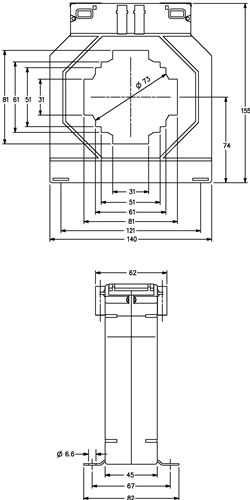

Primary Current Range Primary Accomodation

Body Unit Dimensions

(L x W x H) mm

Maximum VA at Accuracy Class
Class 0.2s Class 0.2 Class 0.5 Class 1 Class 3
200/5A 73mm dia hole 81 x 31 Busbar

140 x 45 x 155

74mm from deck to center of aperture

- - 2.5 5 7.5
250/5A - - 5 10 15
300/5A - 1.5 7.5 15 -
400/5A - 2.5 10 15 20
500/5A - 5 15 30 45
600/5A 2.5 7.5 15 30 45
750/5A 3.75 10 15 45 60
800/5A 5 10 15 45 60
1000/5A 10 15 30 60 60
1200/5A 10 15 30 60 -
1250/5A 10 30 60 60 -
1500/5A 10 30 60 60 -
1600/5A 10 30 60 60 -
2000/5A 10 30 60 60 -
Availability Buy Product Online Save 5% if you pay by Credit Card
Range Not Stocked No
